2022 China Most Popular Electrostatic Batch Powder Coating Curing Ovens Price

Model NO. : DV-PCO

Condition : New

Working Temperature : 5-40 Degree

Selling Points : Easy to Operate

Power Supply : 220V/380V,50-60Hz

Heating Method : Electricity, Diesel, Gas

Working Size : 2850mm,3800mm,4750mm,5700mm,6650mm

Cabin System : Rock Wool Sandwich Panel

Heating Time : 10 Minutes

Core Components : Rock Wool Panel, Motor,PLC

Control System : PLC/Button

Power : 18.5kw

Wright : 800kg

Transport Package : Wooden Box for Export

Specification : 2650(L)*2100(W)*2000mm(H)

Origin : Shandong Province

HS Code : 8514109000

Supply Ability : 60 Sets Per Month

After-sales Service : Online Support and Overseas Support Available

Warranty : 1 Year

Type : Powder Coating Oven

Coating : Powder Coating

Substrate : Steel

Certification : CE

Contact Now

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

(0)

Basic Info.

Model NO.

DV-PCO

Condition

New

Working Temperature

5-40 Degree

Selling Points

Easy to Operate

Power Supply

220V/380V,50-60Hz

Heating Method

Electricity, Diesel, Gas

Working Size

2850mm,3800mm,4750mm,5700mm,6650mm

Cabin System

Rock Wool Sandwich Panel

Heating Time

10 Minutes

Core Components

Rock Wool Panel, Motor,PLC

Control System

PLC/Button

Power

18.5kw

Wright

800kg

Transport Package

Wooden Box for Export

Specification

2650(L)*2100(W)*2000mm(H)

Origin

Shandong Province

HS Code

8514109000

Production Capacity

60 Sets Per Month

Product Description

2022 China Most Popular Electrostatic Batch Powder Coating Curing Ovens Price

Powder Coating Ovens are used for curing powder on metal substrates, such as aluminum extrusions, sheet metal, wheels, composite parts, bike frames and various metal geometric shapes. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

The batch oven is much suitable for the factory, whose production output is not large. It's equipped with floor all inside and outside of the cabin.
The workers need to put the products on the trolley, then push the trolley into the oven. Finally start the heating of the oven, to get the finished products.

Advantages:

* Easy installation
* Lower using cost
* Energy saving
* Long service lifetime
* 304 stainless steel fan impeller
* The control cabinet is touch screen + PLC, the furnace temperature, hot air temperature, and holding time are automatically controlled (the temperature is only started)
* It is used as a high temperature resistant wheel for workpiece trailers.
* Temperature &time automatic control
* Stainless steel electrical heated tube

Specification of Powder Coating Oven:

Cabinet panel	Assembled insulation chamber. 100 mm thickness Rockwool panel; 120kg/m³. Outside is colorful steel, 0.476mm; inner surface is galvanized steel, 0.476m. High quality rock wool board, insulation and fireproof, easy to install. Two hinge doors, and door leaf is also made of 100mm thick rock wool panel, surrounded by 1.5mm galvanized sheet, and is firmly insulated.
Heating system	Stainless steel electric tubes. The heating tube is installed inside the curing furnace and is blocked by the opening baffle to ensure safety.
Circulation system	The heaters are installed to the bottom and two sides of the oven; ensure the temperature is uniform in the oven. With a high temperature stirring fan, ensure the oven temperature uniform. Fan power is 0.75kw, multi-wing galvanized steel impeller.
Guide Rail	One side equip ground rail used for workpiece entry and exit.
Optional	Transfer trolley
Control system	Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled. Fan control, heating control, temperature control, indicator lights for various items, and emergency stop. Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.
Others	Temperature range: RT-230ºC

Optional Size:
Outer size(LWH)	Outer size(LWH)
285023002400mm	265021002000mm
380023002400mm	360021002000mm
475023002400mm	455021002000mm
570023002400mm	550021002000mm
665023002400mm	645021002000mm

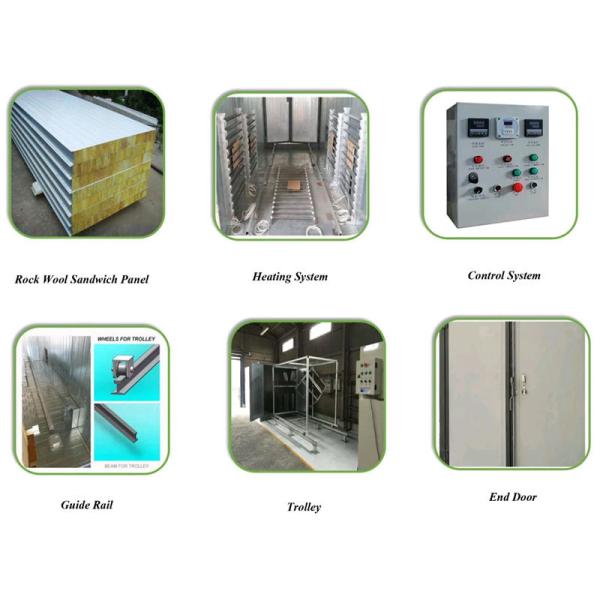

Machine Details:

Cabin System: Rock wool sandwich panel, 100mm thick, density is 120kg/m3. Outside is 0.476mm thick colorful steel, inside is 0.426mm thick galvanized steel, anti-flame, and heat insulation.
Heating System (Electrical): 304 stainless steel heating element, 39kW in total.
The heating elements are installed to the bottom and two sides of the oven, ensure the temperature is uniform in the oven.
Control System: 1 unit, including oven temperature setting, holding time setting, oven indication, power switch, power indicator, working indicator, heating indicator.
Guide Rail: 1 set of steel rail for pushing the trolley in and out. 4 pcs of wheels and 2 pcs of beams for making the trolley.
End Door: 1 set of swing doors for in and out, with lift lock.
2022 China Most Popular Electrostatic Batch Powder Coating Curing Ovens Price

Other Options:

FAQ:

1. Is it safe to operate the machine?

Our equipment is safe, user-friendly and easy to operate, which provides secure setup and all mechanical units can be controlled well.

2. When I get this machine, but I don't know how to use it. What should I do?

There are videos and English manual together with the machine. Also, our technical team is 24 hours online for service support.

3. If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.

4. There are so many machine types, which one should I choose?

It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, please do feel free to contact us.

5. This is my first time to buy your machine; I have no ideas about the machines quality?

Each machine is strictly produced based on the industrial standard and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. Customer is our first priority. We are confident in our high quality and reliable services.

6. How about the payment terms?
Wire transfer/Western Union/LC/Cash and so on.

2022 China Most Popular Electrostatic Batch Powder Coating Curing Ovens Price

Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.

2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.

3. We provide free repair for main spare parts within warranty period according to warranty agreement.

4. We provide upgrades and maintenance for software system within warranty period.

5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
