Customized Small Manual Powder Coating Paint Spray Booth Price

Model NO. : DV-PCB2400

Condition : New

Working Temperature : 5-40 Degree

Selling Points : Easy to Operate

Power Supply : 220V/380V,50-60Hz

Core Components : PLC, Filters

Control System : PLC/Button

Powder Recovery System : Solenoid Valve X4 PCS, The Holec20mm, DC24V

Structure : Packing Down, Easy to Transport

Inner Size : 2400(L)*1150(W)*1700(H)mm

Outer Size : 2400(L)*1670(W)*2805(H)mm

Power : 5.5kw

Transport Package : Wooden Box for Export

Specification : 2650(L)*2100(W)*2000mm(H)

Origin : Shandong Province

HS Code : 8514109000

Supply Ability : 80 Sets Per Month

After-sales Service : Online Support and Overseas Support Available

Warranty : 1 Year

Type : Powder Coating Booth

Coating : Powder Coating

Substrate : Steel

Certification : CE

Contact Now

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

(0)

Basic Info.

Model NO.

DV-PCB2400

Condition

New

Working Temperature

5-40 Degree

Selling Points

Easy to Operate

Power Supply

220V/380V,50-60Hz

Core Components

PLC, Filters

Control System

PLC/Button

Powder Recovery System

Solenoid Valve X4 PCS, The Holec20mm, DC24V

Structure

Packing Down, Easy to Transport

Inner Size

2400(L)*1150(W)*1700(H)mm

Outer Size

2400(L)*1670(W)*2805(H)mm

Power

5.5kw

Transport Package

Wooden Box for Export

Specification

2650(L)*2100(W)*2000mm(H)

Origin

Shandong Province

HS Code

8514109000

Production Capacity

80 Sets Per Month

Product Description

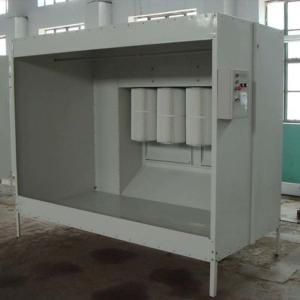

Customized Small Manual Powder Coating Paint Spray Booth Price

Advantages:

* Easy installation
* Lower using cost
* Energy saving
* Long service lifetime

Specification of Powder Coating Booth:

External size(LWH)	2400mm1670mm2805mm
Inside size(LWH)	2400mm1150mm1700mm
Structure	Packing down, easy for transport
Cabin system	Made of galvanized steel, powder coated on the surface there is a cross bar on the top for hanging the work piece
Powder recovery system	Filter cartridge 5pcs, 600mm Ø320mm Solenoid valve *5pcs, the hole Ø20mm, DC24V
Circulation system	1 set of centrifugal blower, motor 3.0kW, air flow 3000-5000m³/h The blower connected with booth by anti-flaming soft tubes The exhaust vent of the blower could be adjusted in four directions
Blower holder system	Made by 40mm*40mm square tubes Independent from the booth to prevent the resonance and the noise
Lighting system	1 set of explosion proof light, 2 pcs of LED lighting tuble, each 18W
Control system	1 set, control the power, pulse blowback, light and blower

Machine Details:

Other Options:

Process of Powder Coating:

Step 1: Pre-treatment, to remove the rust and oil on the product's surface.
Step 2: Powder coating manually or automatically.
Step 3: Powder curing in the oven under 180ºC for 20 minutes.
Step 4: Cooling naturally

FAQ:

1. Is it safe to operate the machine?

Our equipment is safe, user-friendly and easy to operate, which provides secure setup and all mechanical units can be controlled well.

2. When I get this machine, but I don't know how to use it. What should I do?

There are videos and English manual together with the machine. Also, our technical team is 24 hours online for service support.

3. If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.

4. There are so many machine types, which one should I choose?

It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, please do feel free to contact us.

5. This is my first time to buy your machine; I have no ideas about the machines quality?

Each machine is strictly produced based on the industrial standard and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. Customer is our first priority. We are confident in our high quality and reliable services.

6. How about the payment terms?
Wire transfer/Western Union/LC/Cash and so on.

Customized Small Manual Powder Coating Paint Spray Booth Price

Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.

2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.

3. We provide free repair for main spare parts within warranty period according to warranty agreement.

4. We provide upgrades and maintenance for software system within warranty period.

5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
Customized Small Manual Powder Coating Paint Spray Booth Price
