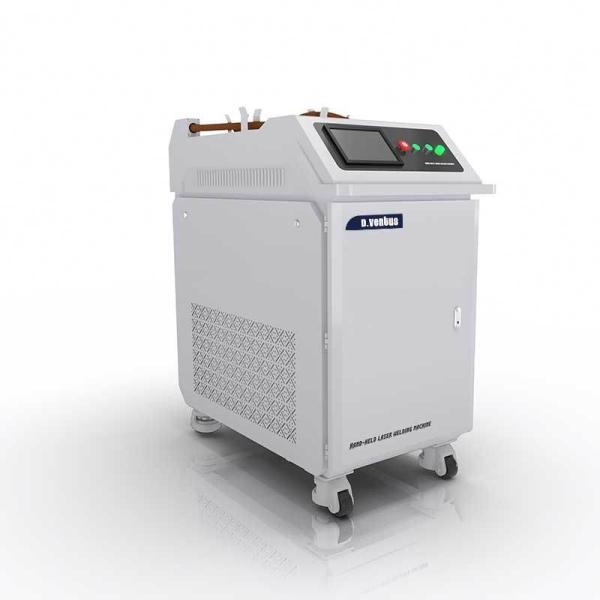

Multi functional Handheld Fiber Laser Welding Machine Made in China
Parameters: | Model | DV-LW |
| Laser Power | 1000W/1500W/2000W |
| Laser Type | Fiber Laser |
| Wavelength | 1070nm |
| Voltage | 220V±10% / 50Hz / 30A |
| Gross Power | <8KW |
| Welding Thickness | < 8mm |
| Welding Gap Requirements | ≤0.5mm |
| Welding Speed | 0~120 mm/s |
| Welding Head Configuration | Swing Welding Head + Water Cooling (optional) |
| Laser Operation | Continuous/Modulation |
| Beam Divergence Angle | ≤1.2mrad/m |
| Welding Joint Interface | QBH |
| Fiber Wire Length | 10m |
| Spot Dia | 0.2-2mm Adjustable |
| Positioning | Red Pointer |
| Cooling System | Industrial Chiller |
| Operating Temperature | 15~35 ºC |
Specifications:
1. It could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2. Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
3. Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4. Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.
Machine Details of Laser Welder: Professional fiber laser welding head;
It's handheld type which is of ergonomic design;
This head could be equipped with a variety of angular nozzles to meet the welding needs of different products
Application:
Reliable Services:1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.
2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.
3. We provide free repair for main spare parts within warranty period according to warranty agreement.
4. We provide upgrades and maintenance for software system within warranty period.
5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.
6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
FAQ:1. Is any kind of gas needed?
Nitrogen or argon is ok as auxiliary gas for laser welding.
2. Is professional technician needed to operate this machine?
No. It's easy to operate and 0 experience worker can operate it and make it.
3. Is wire filler needed or not?
For thick material welding or if there's gap, wire filler is needed, which can increase the welding strength and penetration.
4. What type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.
