Portable Laser Cleaning Machine Laser Paint Removal Suppliers

Model NO. : DV-LC

Scanning Width : 50mm/150mm/300mm for Option

Cable Length : 10m or Customized

Cooling Mode : Water Cooling

Power Supply : 220V/380V,50-60Hz

Application : Rust Removal, Oil Cleaning, Paint Stripping

Advantage : High Efficient, Powerful and Convenient

Transport Package : Wooden Box

Specification : 1-2CBM

Origin : Shandong Province

HS Code : 8456110090

Supply Ability : 50 Sets Per Month

After-sales Service : Online Support and Overseas Support Available

Power : 1kw/1.5kw/2kw

Control Type : Handheld

Warranty : 2 Years

Working Temperature : 5-40 Degree

Selling Points : Powerful and Multi-Functional

Contact Now

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
DV-LC
Scanning Width
50mm/150mm/300mm for Option
Cable Length
10m or Customized
Cooling Mode
Water Cooling
Power Supply
220V/380V,50-60Hz
Application
Rust Removal, Oil Cleaning, Paint Stripping
Advantage
High Efficient, Powerful and Convenient
Transport Package
Wooden Box
Specification
1-2CBM
Origin
Shandong Province
HS Code
8456110090
Production Capacity
50 Sets Per Month

Product Description

Portable Laser Cleaning Machine Laser Paint Removal Suppliers

Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Advantages :

1) High cleanliness and precise positioning cleaning;
2) Non-contact cleaning, protecting brittleness material surface;
3) Zero maintenance cost and environmental friendly;No chemical pollution, no noise, energy-saving;
4) It can clear the pollution particles below the nanometer level and have high cleanliness;
5) Fiber optic transmission can move operation, can clean the area which is not easy to reach;
6) Laser cleaning can solve the problems that traditional cleaning methods can not solve with high efficiency and powerful capacity;
7) With wide materials application scope.

Specification of Laser Cleaning Machine:
NO.
Item
Parameter
1
Model
DV-LC1000/DV-LC1500/DV-LC2000
2
Laser Power
1000W / 1500W / 2000W
3 Laser Type Constant Fiber Laser Cleaning Machine
4
Laser Source
MAX / Raycus / JPT
5
Central Wavelength
1064nm
6
Cable Length
10M
7
Cleaning Efficiency
12m2 /h
8
Cooling Type
Water cooling
9
Scanning Width (mm)
 150mm/300mm
10
Expected Focal Distance(mm)
400mm
11
Input Power
380V/220V, 50/60H
12
Dimensions
1780mm×82mm×1430mm
13
Weight
230KG

Cleaning Efficiency:
Laser Power1000W1500W2000W
Cleaning Surface
Light rust (20um)10m3/h15m3/h20m3/h
Paint (120um)4m3/h6m3/h8m3/h
Heavy rust (100um)2.5m3/h4m3/h5m3/h

Machine Details of Laser Cleaning Machine:
Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Laser Power: 1kw/1.5kw/2kw;

Laser Source: Raycus/MAX/JPT for option;

Cooling Mode: Industrial Hanli Water Chiller;

Power Supply: 220V/380V,50-60Hz
Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Professional Laser Cleaning System;

Cleaning Application: Rust removal, oil contamination cleaning, paint stripping and raw steel cleaning, being prepared for powder coating process as pre-treatment;

Scanning width: 300mm(0-300mm adjustable).

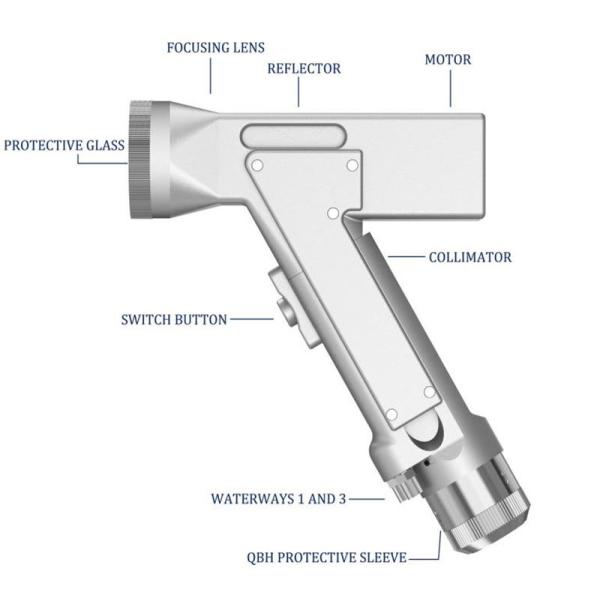

Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Professional fiber laser cleaning head;

It's handheld type which is of ergonomic design;

It can flexibly repond to various objects and angles;

It's easy to operate and portable to move.
Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Specialized 1064nm protective glasses to ensure safety.

Layout of Laser Cleaning Machine:

Portable Laser Cleaning Machine Laser Paint Removal Suppliers


Applications of Fiber Laser Cleaning Machine:

* Surface oil contamination, stains, dirt cleaning
* Surface coating removal
* Surface paint removal, paint stripping treatment
* Light tar and heavy tar cleaning
* Metal surface rust removal
* Rubber mold residue cleaning
* Stone surface dust and attachment removal
* Welding surface / spray surface pretreatment
* Raw steel suface cleaning
* Being prepared for powder coating process as pretreatment.
Portable Laser Cleaning Machine Laser Paint Removal Suppliers


Cleaning Samples:

Portable Laser Cleaning Machine Laser Paint Removal Suppliers
Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.

2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.

3. We provide free repair for main spare parts within warranty period according to warranty agreement.

4. We provide upgrades and maintenance for software system within warranty period.

5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.

Portable Laser Cleaning Machine Laser Paint Removal SuppliersPortable Laser Cleaning Machine Laser Paint Removal SuppliersPortable Laser Cleaning Machine Laser Paint Removal SuppliersPortable Laser Cleaning Machine Laser Paint Removal Suppliers
